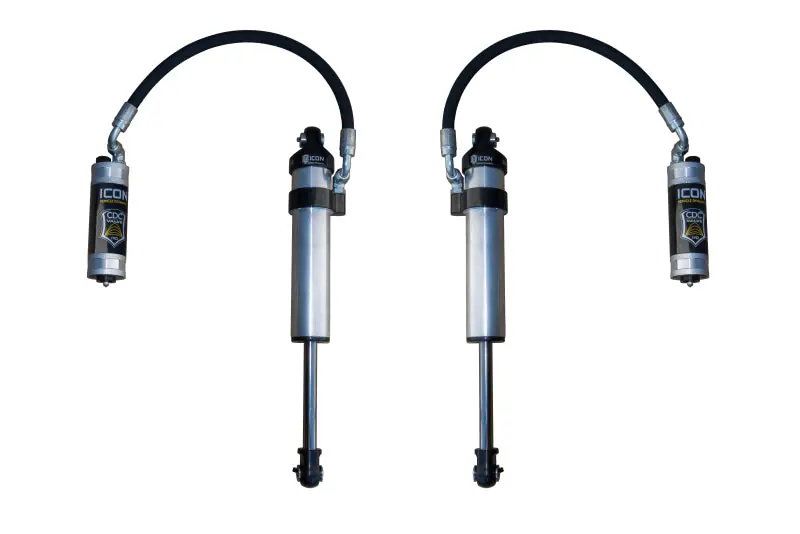

Shop Now ICON Toyota Secondary Long Travel 2.5 Series Shocks RR CDCV – Pair

Description

Manufacturer Part # : 59703CP-CB

Market Description

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON’S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.

Product Description – Extended

• ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs, damping adjustability, and are 100% rebuildable/revalveable.
• TOYOTA SECONDARY LONG TRAVEL 2.5 REMOTE RESERVOIR CDCV SHOCK PAIR

Associated Comments

• TECH NOTE: Will not fit ICON S2 Secondary Shock System or any other stock width control arm kits with secondary shock compatibility
• TECH NOTE: Fits common aftermarket long travel kits with secondary shock compatibility and matching secondary shock hoop

Features and Benefits

• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• ICON’s CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardw
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with remote reservoir
• 6061 aircraft grade aluminum CNC machined components
• 100% Revalveable
• 100% Rebuildable

Product Description – Short

• ICON Toyota Secondary Long Travel 2.5 Series Shocks RR CDCV – Pair
• SECONDARY SHOCKS

Product Description – Long

TOYOTA SECONDARY LONG TRAVEL 2.5 RR CDCV PAIR

Product Description – Invoice

• TOYOTA SECNDRY LONG TRAVEL 2.5 RR CDCV
• 59703CP-CB

AAIA Part Type Description

Suspension Shock Absorber Set

“>
