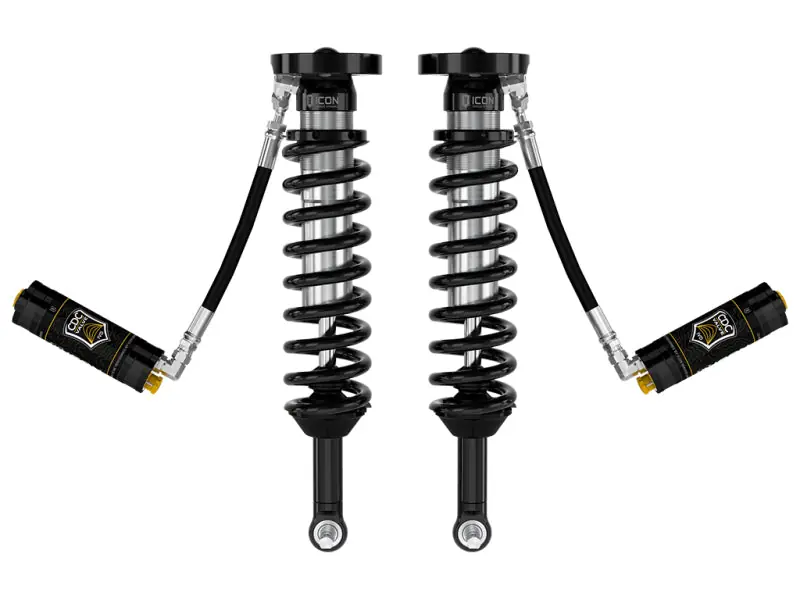

Original ICON 2023+ GM Canyon/Colorado EXT Travel 2.5 Series Shocks VS RR CDCV Coilover Kit

Description

Manufacturer Part # : 71670C

Market Description

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2023-2024 GMC Canyon and 2023-2024 Chevrolet Colorado Trail Boss and Colorado ZR2 trucks. Their longer length offers a 20% increase in total front wheel travel compared to stock, for a total of 10.25” of front wheel travel. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-2.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON’s exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your GMC Canyon or Chevrolet Colorado Trail Boss and ZR2.

Product Description – Extended

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.

Associated Comments

• Recommended Aftermarket Tires: 35″ x 12.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• TECH NOTE: Chevrolet Colorado ZR2 and GMC Canyon AT4X will have front lift height range of .75″-1.5″
• Recommended Aftermarket Wheels: 17×8.5″ w/ 5.46” Backspace / 18mm Offset
• APPLICATION NOTE #152: ICON Delta Joint Pro upper control arms required
• APPLICATION NOTE #158: Only fits “Ultra-Wide Stance” vehicles
• APPLICATION NOTE #156: Springs are rated for gasoline engines
• TECH NOTE: Will not fit Chevrolet Colorado WT, LT, or Z71
• Factory Wheels & Tires Fitment: Yes

Features and Benefits

• High strength alloy CNC machined lower bar pin and application specific mounting hardware
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• PTFE lined spherical bearings for extended longevity and minimal deflection
• 100% Bolt-on – no drilling, cutting, or welding necessary for installation
• 20% increase in front wheel travel and improved ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Corrosion resistant CAD plated 2.5” diameter shock bodies
• Adjustable for 1.75-2.5″ of front lift height over stock
• 6061 Aircraft grade aluminum CNC machined components
• 7/8″ diameter hardened chrome plated shafts
• Fully rebuildable and re-tunable
• ICON engineered coil springs

Product Description – Short

• ICON 2023+ GM Canyon/Colorado EXT Travel 2.5 Series Shocks VS RR CDCV Coilover Kit
• COILOVER KIT

Product Description – Long

23-24 GM CANYON/COLORADO 2.5 VS RR CDCV COILOVER KIT

AAIA Part Type Description

Coilover Spring and Shock Assembly

Product Description – Invoice

71670C

“>
