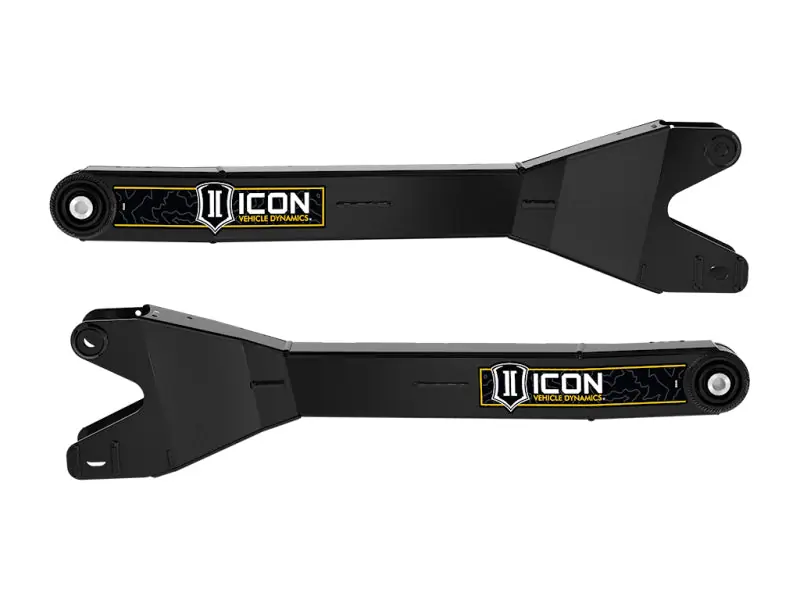

Instant Buy ICON 23-25 Ford F-250/F-350/F-450 Super Duty 2-5.5in Lift Radius Arm System

Description

Manufacturer Part # : 64043

Market Description

The ICON Vehicle Dynamics Ford 2023-2025 F-250 and F-350 Super Duty 4WD Radius Arm System is designed with adjustable caster cams allowing fine tuning of caster angle for optimum drivability. Their added caster allows for use with 2-6” of front lift over stock with the radius arm installed in the factory pivot, eliminating the need for caster bushings or radius arm drop brackets. They feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm. For trucks equipped with OnBoard Scales ICON also offers sensor linkage brackets for specific height ranges that allows attachment of the OE sensor linkages to the ICON radius arm, ensuring proper function of that system.

Product Description – Extended

The ICON Vehicle Dynamics Ford Super Duty 4WD Radius Arm System is designed with adjustable caster cams and their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock.

Associated Comments

• TECH NOTE: Compatible with 2-6″ front lift height without need for caster bushings or radius arm drop brackets. Not recommended for use on stock height trucks.
• TECH NOTE: Models equipped with OnBoard Scales and up to 3.5″ of front lift also require sensor bracket part number 66203
• TECH NOTE: Models equipped with OnBoard Scales and 4-6″ of front lift also require sensor bracket part number 66204
• Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm Offset
• Recommended Aftermarket Tires: Up to a 37″ x 12.50″
• APPLICATION NOTE #1: Only fits 4WD models
• OEM Wheels & Tires Fitment: Yes

Features and Benefits

• Ability to have a 5.5” backspace wheel with 37” tires without contact with the arm at steering lock
• Replaceable sealed pivot bushing provides maintenance free operation
• Built in caster adjustment for optimized return to center
• Ample caster range for 2-6″ of front lift over stock
• CNC machined and laser cut steel components
• Semi-gloss black powder coat finish
• Fully boxed design

Product Description – Short

• ICON 23-25 Ford F-250/F-350/F-450 Super Duty 2-5.5in Lift Radius Arm System
• RADIUS ARM KIT

Product Description – Long

23-25 FSD 2-5.5″ LIFT RADIUS ARM SYSTEM

Product Description – Invoice

64043

“>
