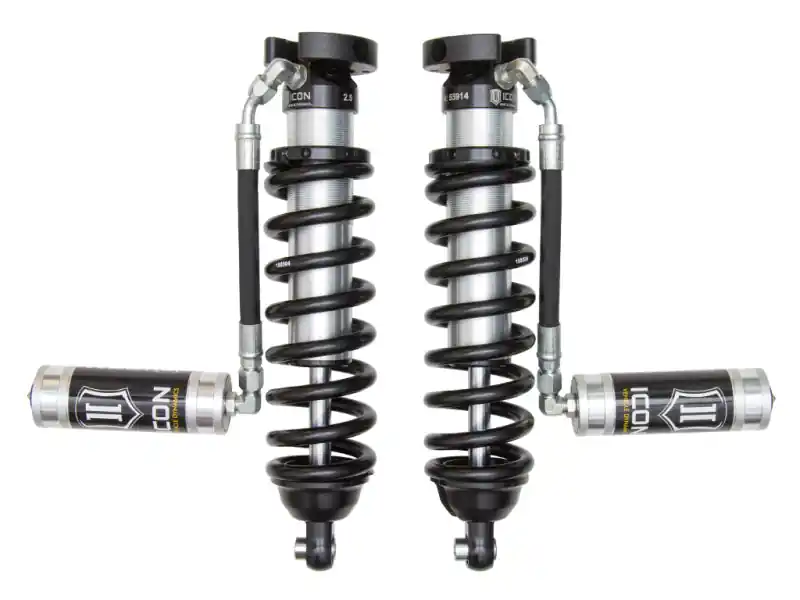

ICON 96-04 Toyota Tacoma Ext Travel 2.5 Series Shocks VS RR Coilover Kit 700lb Luxury

Description

Manufacturer Part # : 58715-700

Market Description

ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 1996-2004 Toyota Tacoma 4WD/Prerunner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON rear 2.0 Aluminum Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Tacoma.

Product Description – Extended

• These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
• 1996-2004 TACOMA EXT TRAVEL 2.5 VS REMOTE RESERVOIR COILOVER KIT 700LB

Associated Comments

• TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
• APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation
• Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
• APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 4.75” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.00” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.00” Backspace / 0mm Offset
• APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
• OEM Wheels & Tires Fitment: Yes

Features and Benefits

• ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
• Corrosion resistant CAD plated shock body with 7/8″ induction hardened, chrome plated shaft
• External reservoir to attain cooler operating temperatures during extended off-road use
• Vehicle specific tuned front shocks for superior shock damping and control
• FK Rod End bearings for extended longevity and minimal deflection
• Height-adjustable coilovers offer 0-3″ of lift height adjustment
• 100% Bolt-on – no cutting or welding necessary for installation
• 6061 Aircraft grade aluminum CNC machined components
• Improved ride quality over stock on and off-road
• Increased wheel travel over stock

Product Description – Short

• ICON 96-04 Toyota Tacoma Ext Travel 2.5 Series Shocks VS RR Coilover Kit 700lb
• TACOMA COILOVERS
• COILOVER KIT

Product Description – Long

96-04 TACOMA EXT TRAVEL 2.5 VS RR COILOVER KIT 700LB

Product Description – Invoice

• 96-04 TACOMA EXT 2.5 VS RR CO KIT 700LB
• 58715-700

AAIA Part Type Description

Coilover Spring and Shock Assembly

“>
