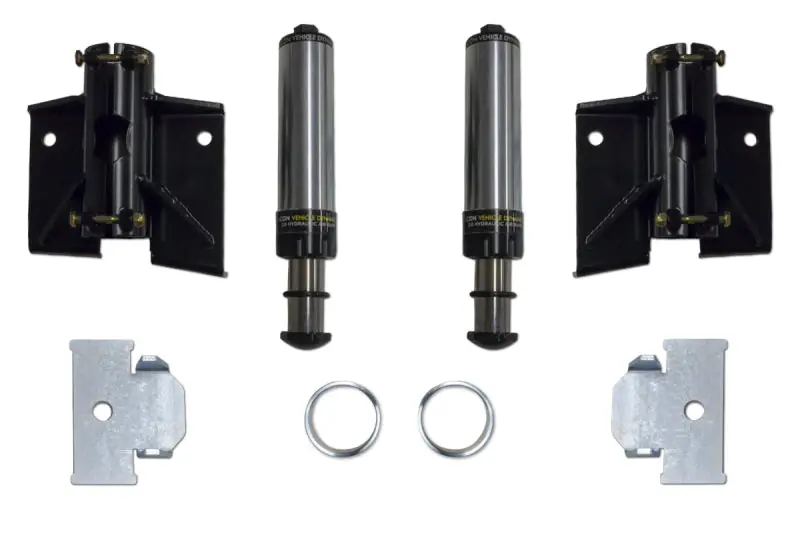

ICON 2005+ Toyota Tacoma Rear Hyd Bump Stop Kit Place Order

Description

Manufacturer Part # : 56103

Market Description

• Bolt on a set of ICON Vehicle Dynamics rear hydraulic air bumpstops to improve the on or off-road capabilities of your 2005-2023 Toyota Tacoma when using maximum suspension travel. ICON’s race proven hydraulic air bumpstops are tested, tried and true, from Cabo to Canada in all conditions. This vehicle specific tuned hydraulic air bumpstop system offers both smooth engagement, maximum bottom resistance, and smooth controlled return while being used in extreme conditions. The true value to using a compression and rebound tuned bumpstop is the exponentially increasing force is smooth, not abrupt or harsh like the OEM bumpstop.
• As part of the kit, ICON includes an industry first selectable install height for the hydraulic air bumpstop so up travel is not limited with use of an aftermarket thicker leaf pack. This allows you to upgrade your leaf springs down the road, and retain maximum up travel without having to purchase a new bump stop bracket kit.

Product Description – Extended

• This vehicle specific tuned hydraulic bumpstop system offers both smooth engagement, maximum bottom resistance, and smooth controlled return. The compression and rebound tuned bumpstop is smooth, not abrupt or harsh like the OE bumpstop.
• 2005-UP TACOMA REAR HYDRAULIC BUMP STOP SYSTEM

Features and Benefits

• Linear-digressive piston which compliment a bumpstop over the industry standard linear-linear piston. Infinite tuning options with valve stack, oil volume, and nitrogen pressure adjustments
• Industry only Toyota Tacoma specific tune to maximize bottom out resistance while having smooth engagement as well as return
• Absorbs additional impact energy over the OEM rubber bumpstop and returns the axle in a more controlled manner
• Industry only kit allowing adjustment for leaf pack height changes so uptravel is not lost
• Bolt-on design using existing holes in frame for clean install with no cutting or welding
• Anodized billet top cap, o-ring sealed back up cap, seal head and striker
• Urethane rod seal and wiper for long service life
• CAD Plated body for corrosion free service
• Can be returned to stock
• User serviceable

Associated Comments

TECH NOTE: Not compatible with 2005-2015 5-lug RWD Tacoma models

Product Description – Short

• ICON 2005+ Toyota Tacoma Rear Hyd Bump Stop Kit
• TACO BUMPSTOP KIT

Product Description – Long

• 05-UP TACOMA REAR HYD BUMP STOP KIT
• 05-23 TACOMA REAR HYD BUMP STOP KIT

Product Description – Invoice

• TACOMA REAR HYD BUMP STOP KIT
• 56103

AAIA Part Type Description

Suspension Bump Stop

“>
