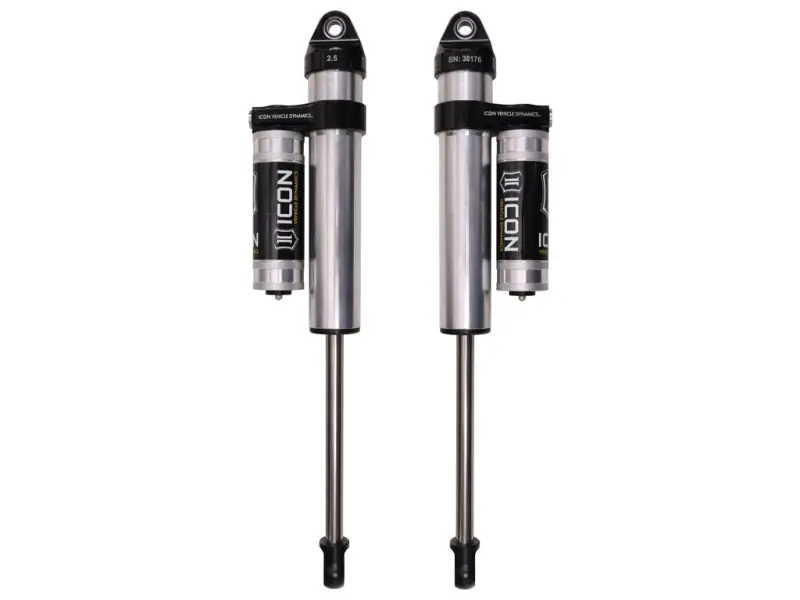

ICON 07-18 GM 1500 0-1.5in Rear 2.5 Series Shocks VS PB – Pair Modern

Description

Manufacturer Part # : 77700P

Market Description

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON’S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV).

Features and Benefits

• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with piggyback reservoir
• 6061 aircraft grade aluminum CNC machined components
• 100% Rebuildable
• 100% Revalveable

Associated Comments

• TECH NOTE: Also compatible with 2019 Chevrolet Silverado 1500 LD and 2019 GMC Sierra 1500 Limited
• TECH NOTE: May require slight modifications to rear shock absorber mounts
• TECH NOTE: Not compatible with models equipped Magnetic Ride Control
• TECH NOTE: Compatible with 0-1.5″ of rear lift on most models
• TECH NOTE: Not recommended for Hybrid models

Product Description – Extended

2007-2018 GM 1500 0-1.5″ LIFT REAR 2.5 VS PIGGYBACK SHOCK PAIR

Product Description – Short

• ICON 07-18 GM 1500 0-1.5in Rear 2.5 Series Shocks VS PB – Pair
• REAR SHOCK ABSORBERS

Product Description – Long

07-18 GM 1500 0-1.5″ REAR 2.5 VS PB PAIR

Product Description – Invoice

07-18 GM 1500 0-1.5 REAR 2.5 PB PAIR

AAIA Part Type Description

Suspension Shock Absorber Set

“>
