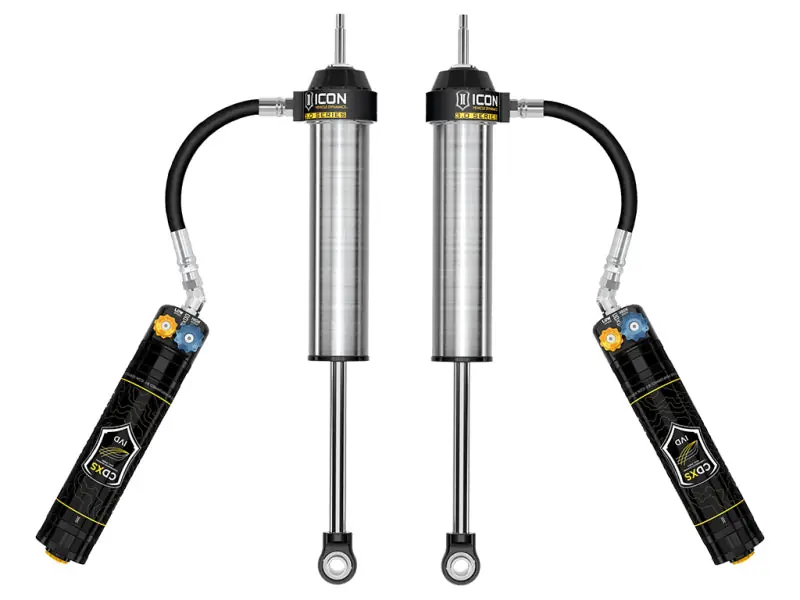

Cheap ICON 22-25 Toyota Tundra 0-1.5in Rear 3.0 Series Shocks VS CDXS RR – Pair

Description

Manufacturer Part # : 57845XP

Market Description

• Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON 3.0 Series Coilovers with CDXS on the front, vehicle control can be precisely dialed in front to rear, resulting in the best overall driving experience.
• These 3.0 Series Shocks are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Compatible with rear lift heights from 0-1.5” over stock on Tundra or 0-4″ over stock on Sequoia allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue.
• 3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Increased internal oil volume and more external surface area compared to 2.5 Series Shocks offer improved heat dissipation and resistance to shock fade under hard use.
• ICON’s 3.0 Series Rear Shocks with CDXS for 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia are designed to take the off-road capability of the truck to new levels by increasing wheel travel by up to 20% and significantly improving the damping ability of the rear shocks, while being compatible with rear lift heights up to 1.5″ over stock on Tundra or 4″ over stock on Sequoia.

Product Description – Extended

ICON VS 3.0 Series shocks are designed and built to give your vehicle maximum performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable. CDCV allows for damping adjustment.

Features and Benefits

• ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• Compatible with up to 1.5” of rear lift on most Tundra models or 3″ of lift on Sequoia
• PTFE lined spherical bearings for extended longevity and minimal deflection
• Vehicle specific design and tuning for superior shock damping and control
• 3.0” Body diameter for increased oil volume and larger piston area
• CNC machined 6061 aluminum components with a black anodized finish
• 7/8” diameter induction hardened, chrome plated shock shafts
• 20% increase in rear suspension travel compared to stock
• Corrosion resistant CAD plated steel shock bodies
• Fully Rebuildable and Re-tunable

Associated Comments

• TECH NOTE: Compatible with 0-3.5” of rear lift on Tundras equipped with rear OE Load-leveling Rear Height Control Air Suspension
• TECH NOTE: Compatible with 0-1.5” of rear lift on non-TRD Tundras or 0-1″ lift on TRD Tundras equipped with rear coil springs
• TECH NOTE: Compatible with 0-4” of rear lift on non-TRD Sequoias equipped with rear coil springs or 0-2″ lift on TRD Sequoias
• APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles.

Product Description – Short

• ICON 22-25 Toyota Tundra 0-1.5in Rear 3.0 Series Shocks VS CDXS RR – Pair
• SHOCK ABSORBER PAIR

Product Description – Long

22-25 TUNDRA 0-1.5″/23-25 SEQUOIA 0-4″ REAR 3.0 VS RR CDXS PAIR

AAIA Part Type Description

Suspension Shock Absorber Set

Product Description – Invoice

57845CP

“>
